What is Grove

Overview

Grove is an inexpensive connection system for hobbyist micro-controllers (Pico, RPi and Arduino) and comes with a whole eco-system of boards and hats. This makes it very convenient for trainers and hobbyist engineers.

SEEED Grove Website

Digital Connectors

GroveDigitalConnection

Connectors D16,D18,D20 are used for our examples and are wired as shown in Figure 1

Analog Connectors

GroveAnalogConnection

Connectors A0,A1,A2 are used for our examples and are wired similar to Figure 2

UART Connectors

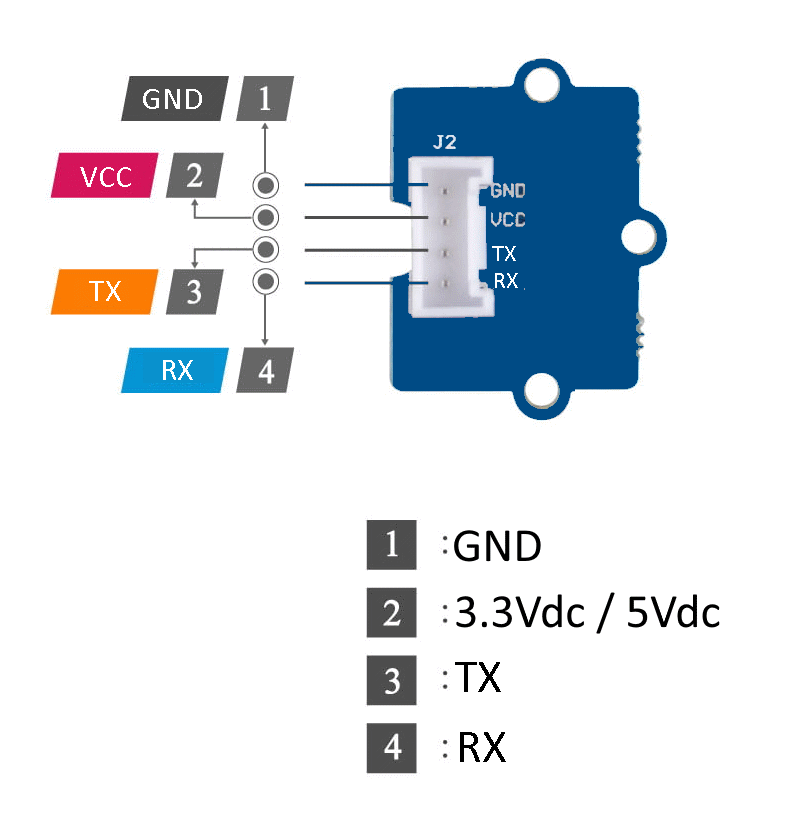

GroveUARTConnection

Connectors UART0 and UART1 are used for our examples and are wired as shown in Figure 3

I2C Connectors

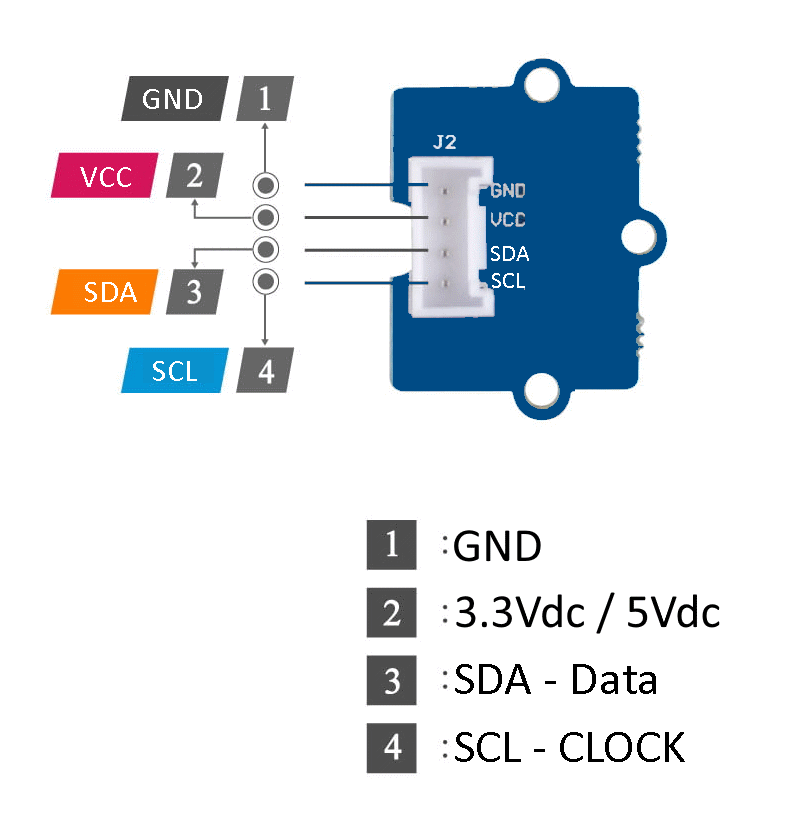

GroveI2CConnection

Connectors I2C0 and I2C1 are used for our examples and are wired as shown in Figure 4
