Set-up free LabVIEW™ Vitual Machine Instructions

Install Virtualbox

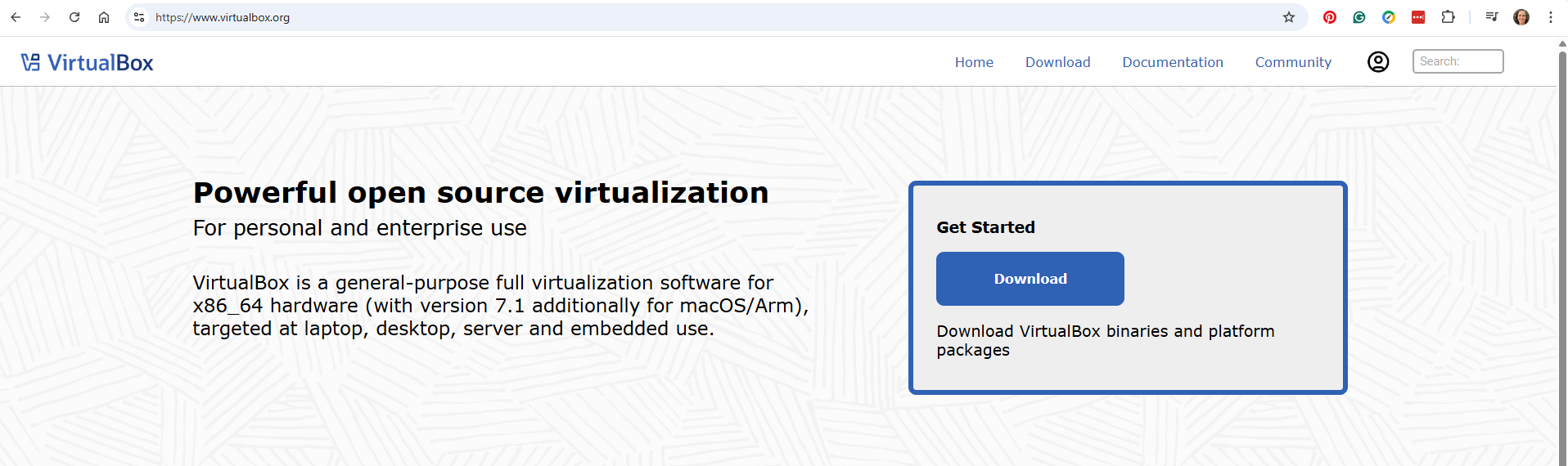

Go to Virtualbox.org and download version 7.0.X

in 001.00 DownoadVirtualBox

Click on the Download Button, that will take you to the Downloads page

in 001.01 DownoadVirtualBox DownloadsPage

there, scroll down to click on "Previous Releases"

in 001.02 DownoadVirtualBox ClickOnPreviousReleases

Select the 7.0.X release

in 001.03 DownoadVirtualBox SelectVersion7.0

and install.

Import VM

Visit Gcentral/cti and download the OVA file for the CTI virtual machine

in 001.04 GCentral CTI

Now File  Import Appliance into Virtualbox

in 002.00 ImportAppliance

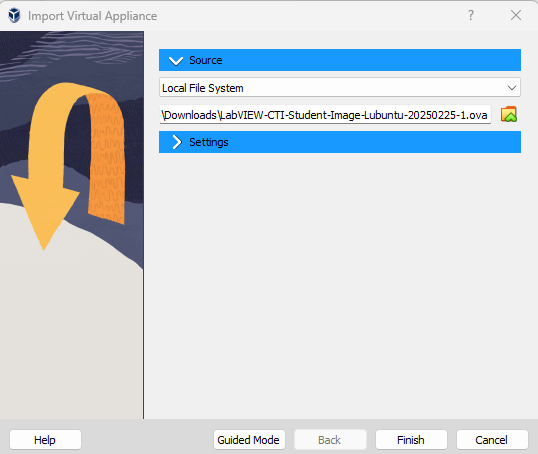

Find the downloaded OVA and press Next

in 003.00 ApplianceToImport
in 004.00 ApplianceSettings

Press finish and the OVA will Import and appear as a new Virtual Machine (VM).

in 005.00 ImportingAppliance
in 006.00 Start

When imported open the new VM

You may need to click on the "Show" button to get to your Virtual Machine

in 008 Show
The right ctrl button will free your mouse if the VM steals it.

We no longer log in as a ROOT. The amazing team behind CTI has figured out how to avoid the need to have a ROOT Login. We will be using instead the CTI STUDENT log in with the following password: labviewtraining

The default keyboard mapping is QWERTY. See Setting Up Your Keyboard when you’re logged in to change the mapping if needed.
in 009.00 LogIn

You will see the following Desktop

in 011.00 Desktop

Setting Up Your Keyboard

To change to a different keyboard, open up the start-up menu:

in 012.00 ClickOnMenu

Type Keyboard and click on "Keyboard and Mouse"

in 012.01 TypeKeyboard

Click on "Keyboard Layout" Select the keyboard that suits from the extensive list!

in 013.00 KeyboardLanguage

Load and Activate LabVIEW

We strongly recommend that you open Firefox before you activate LabVIEW. Open up the start-up menu and click on Other>>Post a question on the NI Forums This will open the NI Forums.

in 014.00 OpenNIwebsite

If you don’t have an account, please create one and log in. If you already have an account, please log in. The first time you open Firefox it may take a little longer to refresh.

in 014.01 CreateNIaccountOrLogIn

You also need to have LabVIEW Community Edition Listed as one of your products. To verify this, go to "My Products". This may take a couple of minutes.

in 014.02 MyProducts

You should have LabVIEW Community Edition, Linux listed as one of your products

in 014.04 LabVIEWCommunityEditionLinux
Don’t see LabVIEW Community Edition Listed

If you don’t see, it, you will need to initiate the LabVIEW download process to gain that entitlement.

To download, go to Products>>LabVIEW

in 014.05 ProductsLabVIEW

Click on the Download button

in 014.06 ClickDownload

Select the Community Edition for Linux and click Download

in 014.07 SelectLinuxCommunityEdition

You can cancel the download process because LabVIEW is already installed on your VM. You just needed to initiate the download process to get the entitlement.

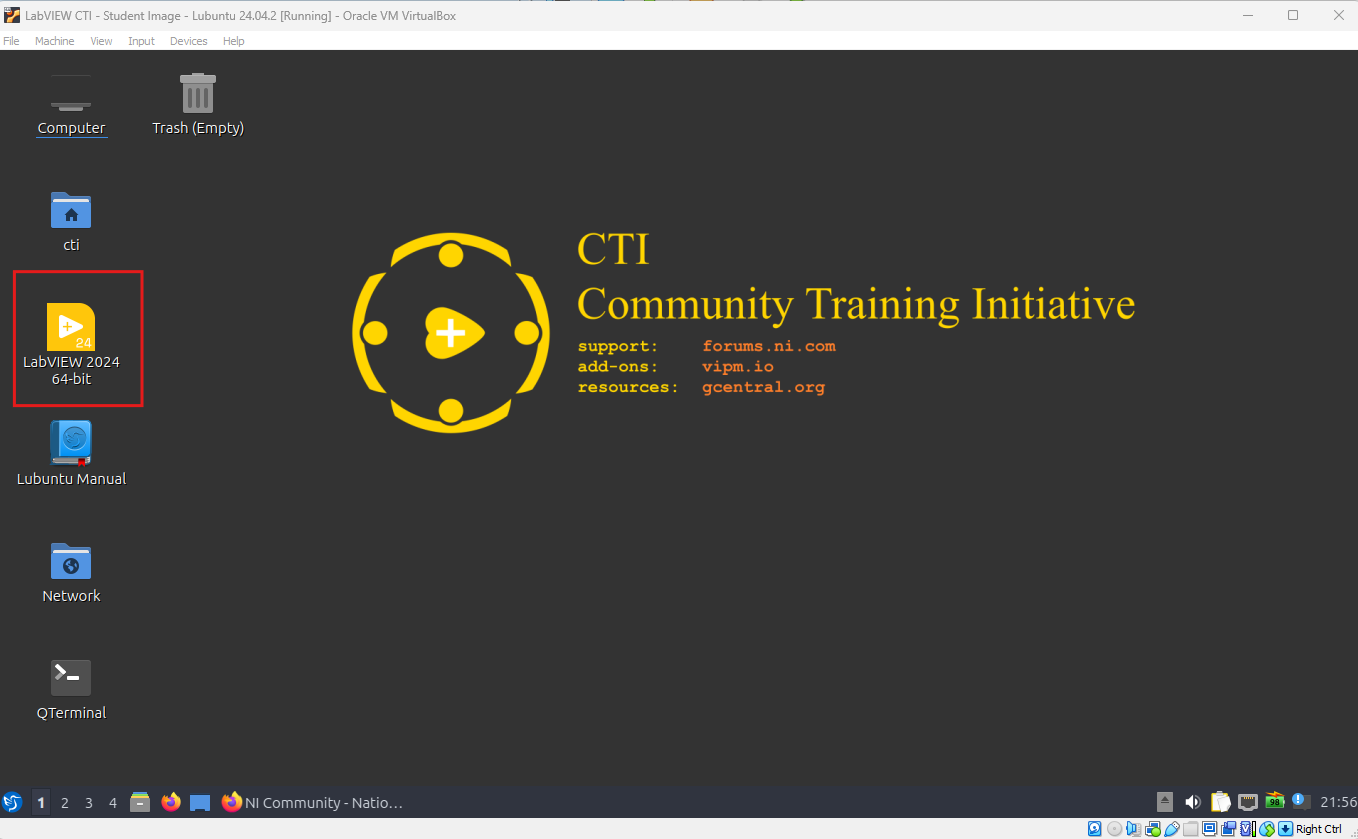

Now, you can minimize Firefox for now and let’s open LabVIEW to activate it. Double-click on the LabVIEW shortcut on the VM desktop

in 014.08 ClickOnLabVIEWdesktopShortcut

Activate LabVIEW Community Edition License. You will need to log in again to your NI Account on on NI.com.

in 015.00 ActivateLabVIEWCommunityEdition

This will load the activation website in using Firefox

in 016.00 NIuserAccount

Tap in your user account details and the LabVIEW license will activate.

LabVIEW will now load as normal
